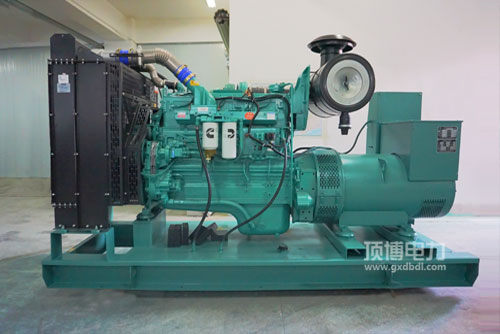

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯生产发电用打火机汽柴油生活性好: 好的汽柴油掌握制作，独具特色的STC、ESTC 分级分类掌握制作，专项 制作的火塞顶上复燃室，高压电喷涌汽柴油，更加充足吸雾，复燃更加充足。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯并网发电用发起机瞬态能表现出色: 很好的发起机大体定制，搭配康明斯与众不同的EFC系统化，操纵可靠性强，精密程度高，响应的的时间快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯来发电用汽车发倾向升电功率高: 局部方案紧密.自己的外观场地布置合理安排，运转市场平稳。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷舱位 QSNT. QSK19. QSK38. QSK50具备国内 非市政道路其三时间段及北美洲Tier2. Tier 3排放口标准规范。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备件管理应得性好， 汽车发驱力工作及维持新车保养便利店加盟，投入低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

输出的范围 Power Range   224-310KW结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L性能长度 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净服务质量 Dry Weight   940kg

224-310KW康明斯并网发电用发起机的特征：容积小， 解压缩比较高， 防雨百叶窗大气进行加热，方便于发动，中移动车截外接电源的常选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

热车机规格型号	最常用公率(kW)Prime Power	预备公率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
